CNC Milling is one of the most well-known methods to make various custom plastic and metal parts and components among the various CNC machining processes. It is a rapid manufacturing method that uses the subtraction machining process to remove materials on the block little by little to get the desired shape and spec according to your design requirements.

What is CNC Milling

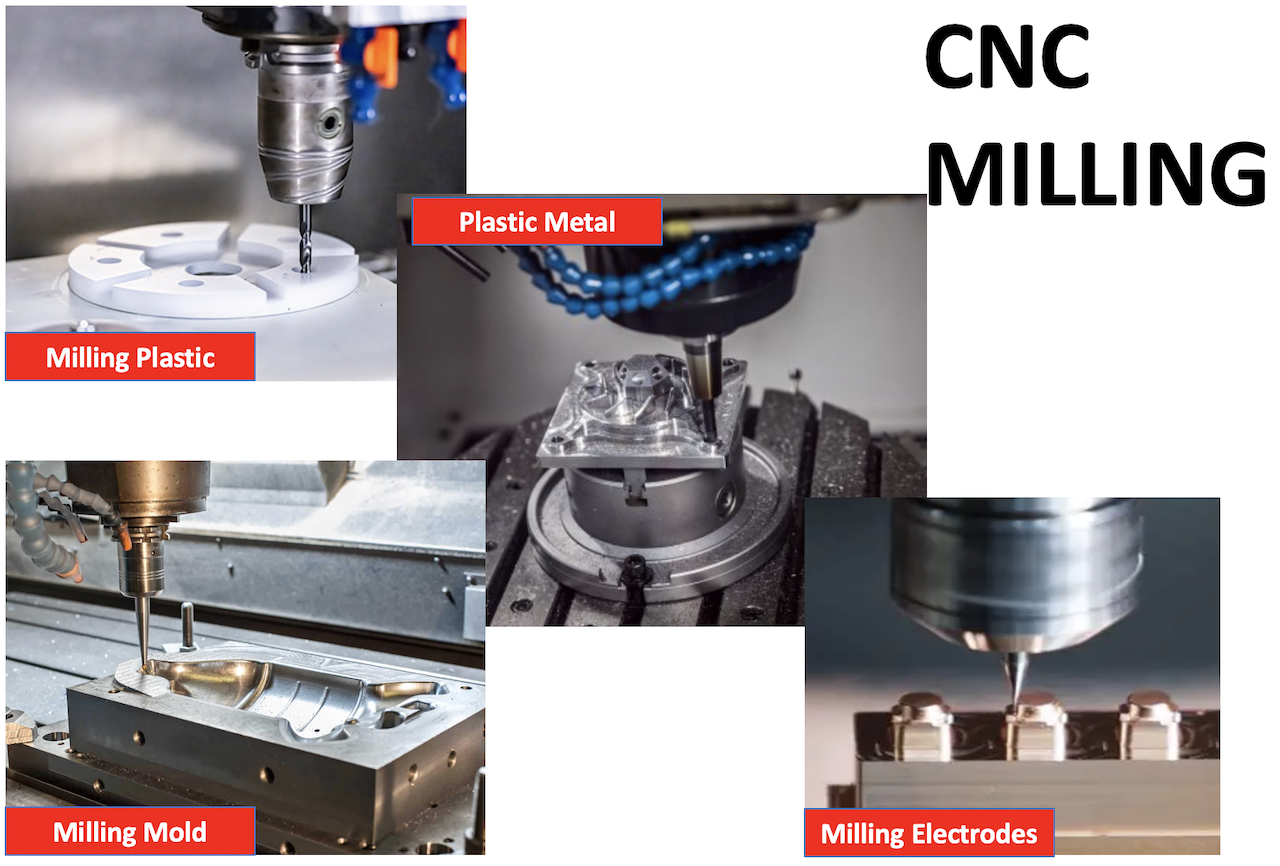

CNC milling(Computer Numerical Control milling) is a precision machining process to create custom parts through using computer-controlled rotating cutting tools to remove material from a solid block (people also called it a workpiece).Comparing to the traditional machining/manual operation, a programmed computer controls the machine’s movement, cutting speed, and tool path — delivering high accuracy, repeatability, and efficiency.

How CNC Milling Works

Like the other CNC machining processes, CNC milling uses computerized commands as well. So, you first need to supply the software or data information to the CNC equipment before you can start its operations. You will need to use CAD software to create the initial prototype or part design you would like to produce, and then you will need to convert the design data into CNC data, which the milling equipment can process.



After supplying the design data to the CNC equipment, the equipment will start the operation process. However, before doing that, you need to ensure that you have loaded the equipment with the materials you prefer. The machine will use the rotating cylinders as the cutters for the materials and then move the cylinders along the cutter axes.



Using the subtraction machining method, the axe cutters will create holes and cut the materials into shapes that will fit with the initial design data. After completing the process, you can pull out the finished plastic or hardware CNC milling parts and use them further in your product assembly process.

In simple terms

• CAD Design

A 3D model of the part is created using CAD software.

• CAM Programming

The design is converted into machine instructions (G-code).

• Material Setup

The raw material (metal or plastic block) is fixed onto the machine table.

• Machining Process

Rotating cutting tools remove material layer by layer.

• Finishing

Secondary operations like deburring, polishing, or surface treatment may be applied.

Types of CNC Milling Machining

There are several ways to classified CNC milling:by machine structure, by axis movement, and by machining method. Here is a clear breakdown of the main types of CNC milling used in modern manufacturing.

Types of CNC Milling – Integrated Comparison Table

Category	Type	Axis Configuration	Spindle Orientation	Complexity	Advantages	Limitations	Typical Applications	Quick Selection Guide (When to Choose)
Machine Structure	Vertical CNC Milling	3 / 4 / 5 Axis	Vertical	Low–Medium	Easy setup, cost-effective, versatile	Not ideal for very heavy cutting	Plates, mold bases, housings	Choose for general parts, prototypes, and cost-sensitive projects
	Horizontal CNC Milling	3 / 4 Axis	Horizontal	Medium–High	Better chip evacuation, higher productivity	Higher machine cost	Automotive components, batch production	Choose for high-volume production and heavy material removal
	Gantry CNC Milling	3 / 5 Axis	Vertical	High	Handles very large parts, stable structure	Large footprint, expensive	Aerospace frames, large molds	Choose for oversized or heavy structural components
Axis Configuration	3-Axis Milling	X, Y, Z	Vertical / Horizontal	Low–Medium	Simple programming, economical	Limited to single-side machining	Brackets, simple enclosures	Choose for simple geometry and single-face machining
	4-Axis Milling	X, Y, Z + 1 Rotary	Vertical / Horizontal	Medium	Multi-side machining without repositioning	More complex setup	Shafts, cylindrical parts	Choose when parts require machining on multiple sides
	5-Axis Milling	X, Y, Z + 2 Rotary	Mostly Vertical	High	Complex geometry, fewer setups, higher precision	Higher programming & equipment cost	Aerospace parts, medical components, molds	Choose for complex surfaces, undercuts, and precision-critical parts
Milling Operations	Face Milling	3+ Axis	Perpendicular	Low	Produces smooth flat surfaces	Not for deep cavities	Surface finishing	Choose for flat surface finishing and squaring blocks
	Plain (Slab) Milling	3+ Axis	Parallel	Low	Efficient for large flat areas	Limited contour capability	Large plates	Choose for machining wide flat surfaces
	End Milling	3+ Axis	Vertical	Medium	Most versatile cutting method	Tool wear in deep cuts	Slots, pockets, contours	Choose for general-purpose cutting and slot creation
	Slot Milling	3+ Axis	Vertical	Medium	Precise slot and groove cutting	Narrow cutting width	Keyways, grooves	Choose for keyways, T-slots, and narrow channels
	Profile Milling	3–5 Axis	Vertical	Medium–High	Machines complex contours	Requires CAM programming	Mold contours	Choose for curved edges and contour shapes
	Pocket Milling	3–5 Axis	Vertical	Medium	Creates internal cavities	Heat buildup in deep pockets	Mold cavities	Choose for cavity machining and material removal inside boundaries
Specialized Types	High-Speed Milling (HSM)	3–5 Axis	Vertical	High	Fast cycle times, excellent finish	Higher tooling cost	Aluminum parts, precision molds	Choose for fast aluminum machining and fine surface finish
	Micro Milling	3–5 Axis	Vertical	Very High	Ultra-precision small parts	Specialized tools required	Medical, electronics	Choose for miniature or micro-precision components
	Heavy-Duty Milling	3–4 Axis	Horizontal	Medium–High	High material removal rate	Rougher finish	Steel components	Choose for rough machining of hard metals
	Multi-Tasking Milling Center	5 Axis + Turning	Mixed	Very High	Combines milling and turning in one setup	High investment cost	Complex precision components	Choose for complex parts requiring both milling and turning

TEAM RAPID invested in a series of CNC machines; we can make your parts in any volume, whether simple or complex. We have the 3-axis, 4-axis and even 5-axis CNC milling service capability, which can produce your custom CNC milling parts from prototypes to mass production quickly and precisely. Contact us today for your upcoming projects.

Benefits of CNC Milling

The CNC process will allow you to produce CNC milling parts and CNC milling components with high efficiency and accuracy, ensuring that the end products are of high quality. With CNC milling, you can program the CNC vertical milling machine to produce the parts according to your design requirements and finish the production process quickly.

• Reliable, High-quality Results

CNC milling service can provide reliable and high-quality results you can count on every time. The process is repeatable, meaning you don't need to worry about the machine giving you different results every time you operate it. The high-quality results you will get from the CNC milling part in consistent and reliable.

• Complex Shape Production

You can also use CNC milling services to produce prototypes or hardware parts with complex shapes. The CNC milling turning service can handle what the traditional machining process cannot do.

• Precision and Accuracy

By using computerized commands, you can count on the precision and accuracy of the machining process when you use precision CNC milling. The cutting process will be very accurate every time you operate it, as it follows specific computerized commands with little to no chance of failing.

• Production Efficiency

You can use CNC milling service to produce large volumes of prototypes and part designs. You should use this process for CNC mass production, as it will provide the best efficiency. You will only supply the design requirements once, and the CNC vertical milling machine center will do the rest of the work for you.

• Advanced Custom CNC Milling Manufacturing Process

Five-axis CNC mills can often handle tasks that traditional machining processes cannot do. For instance, it can work to produce parts with complex designs and with the highest precision, which many other manufacturing processes cannot handle.

CNC Milling Cases at TEAM RAPID

With a wide range of materials available, it is very flexible to create various end-used parts through prototypes to high-volume by fast CNC machining. Our experts can make the complex cut and CNC milled parts fast to reduce costs and improve the quality of your products. We successfully delivered millions of high-quality custom CNC milling aluminum parts to our customers worldwide. Our 3d milling service helps many customers from different industries make their parts successfully. Here are some parts we made:



                    Plastic Buttons                        Machine Component                            Aluminum Panel                                Medical Prototype                               Automotive Part

Materials for CNC Milling

Various of materials can be used in CNC milling, metals and plastics materials are used commonly in part machining. In the scope of metal materials, you can use steel, aluminum, titanium, and brass for CNC milling process, whereas, for plastic materials, you can use PC, ABS, and nylon. Aside from that, CNC machining is also suitable for other materials, such as ceramics, glass, elastomers, composites and custom CNC milling wood. At TEAM RAPID. we make prototypes, parts and and components in metals and plastics, here are the materials we have:

Category	Material	Key Properties	Typical Applications
Aluminum Alloys	6061	Good machinability, strong, corrosion-resistant	Housings, frames, prototypes
	6082	Similar to 6061, better for Europe standards	Structural parts
	7075	Very high strength, lightweight	Aerospace, high-stress parts
	5052	Good corrosion resistance, weldable	Sheet metal parts, tanks
Steel – Carbon	1018	Easy to machine, cost-effective	Shafts, fixtures
	1045	Stronger than 1018	Gears, mechanical parts
Steel – Alloy	4140	Tough, wear-resistant	Gears, shafts, tooling
	4340	Very high strength	Heavy machinery parts
Tool Steel	D2	High wear resistance	Dies, cutting tools
	H13	Heat-resistant	Injection molds, hot tooling
	A2	Tough, dimensionally stable	Punches, dies
	S7	Shock-resistant	Impact tools
Stainless Steel	304	Corrosion-resistant, food-safe	Medical, kitchen, chemical
	316	Better corrosion resistance (marine grade)	Marine, chemical equipment
	17-4 PH	Very strong, corrosion-resistant	Aerospace, high-performance parts
Titanium	Grade 2	Good corrosion resistance	Medical devices
	Ti-6Al-4V (Grade 5)	Very strong, lightweight	Aerospace, implants
Copper & Alloys	Copper	High electrical/thermal conductivity	Heat sinks, electrodes
	Brass (C360)	Excellent machinability	Fittings, connectors
	Bronze (C932, C954)	Wear-resistant	Bushings, bearings
	Phosphor Bronze	Fatigue-resistant	Springs, connectors
	Beryllium Copper	Strong + conductive	Mold inserts, connectors
Nickel Alloys	Inconel 625	Heat & corrosion resistant	Turbines, aerospace
	Inconel 718	High strength at high temp	Jet engines
	Monel	Seawater resistant	Marine parts
	Hastelloy	Chemical resistant	Petrochemical equipment
	Pure Nickel	Corrosion-resistant	Plating, chemical parts
Magnesium	AZ31, AZ91	Ultra-lightweight	Aerospace, electronics
Plastics – Standard	ABS	Tough, impact-resistant	Enclosures, prototypes
	PMMA (Acrylic)	Transparent, smooth finish	Lenses, displays
	Polycarbonate (PC)	High impact resistance	Protective covers
	PET / PETG	Clear, good machinability	Medical housings
	PE / HDPE	Chemical-resistant	Tanks, lab parts
	UHMW-PE	Very low friction	Conveyor guides
Plastics – Engineering	Nylon (PA6, PA66)	Wear-resistant	Gears, bushings
	POM / Delrin	High dimensional stability	Precision parts
	PEEK	High-temp, chemical-resistant	Aerospace, medical
	PPS	Heat & chemical resistant	Automotive, electronics
	PI (Vespel)	Extreme heat resistance	Semiconductor tools
	PTFE (Teflon)	Very low friction	Seals, gaskets
	G10 / FR4	Electrical insulation	PCB fixtures
Composites	Carbon Fiber	Very strong, lightweight	Aerospace, racing
	Fiberglass	Strong, insulating	Electrical parts

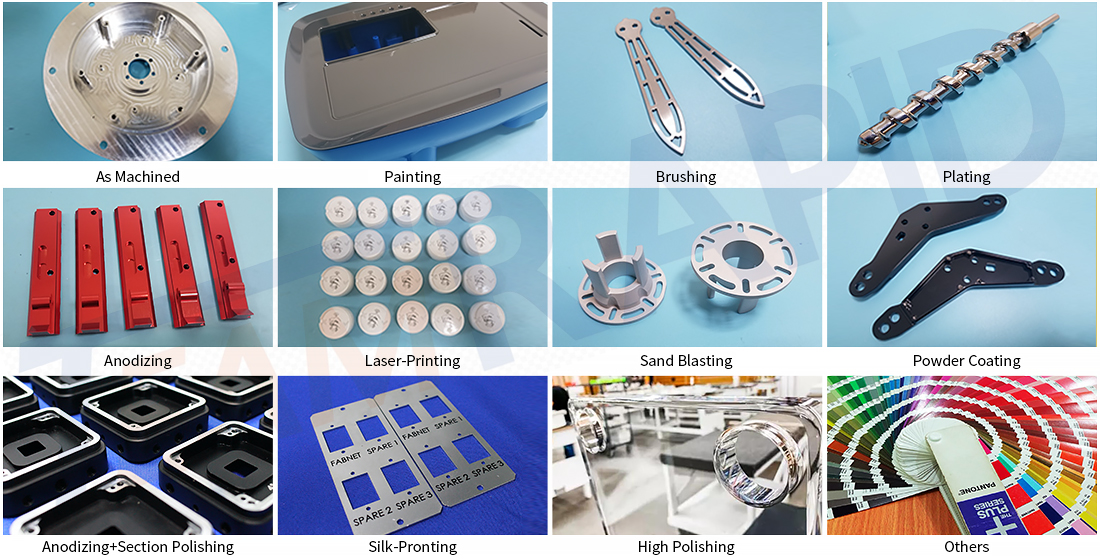

Post-Finish for CNC Milling Parts

A series of post processing finishes available for your custom plastic and metal parts

Batch Size & Economies of Scale in CNC Milling

Batch size has a major impact on the CNC milling prototypes and production parts’ unit cost. Typically, the more quantities, the less unit cost – this is called economies of scale.

Why Batch Size Matters

In CNC milling, total cost is typically made up of:

1. Setup & Programming (Fixed Cost)

• CAM programming
• Machine setup
• Tool selection
• Fixture
• First article inspection

2. Machining Time (Variable Cost)

• Actual cutting time per part
• Tool wear
• Material usage

The key point:

• Setup costs are fixed, regardless of whether you produce 1 part or 100 parts.
• Machining costs scale with quantity.
• As quantity increases, the fixed setup cost is divided across more parts — lowering the price per unit.

CNC Milling Part Pricing Ranges

• 1-5 pcs (prototyping)– highest per-unit cost (setup/programming dominates).
• 10-50 pcs– cost per part can drop ~30–60% as setup is shared.
• 100+ pcs– much lower per-unit costs as machining time dominates.

For example, a part might cost ~$300 as a one-off but drop closer to ~$150 at qty 30 thanks to amortizing setup, CAM programming, and fixture.

CNC Milling vs. CNC Turning

CNC milling and CNC turning are the main of CNC machining methods, both of them are subtractive manufacturing processes, but they are different in how the materials be removed, and the types of parts they produce. The cost, lead time, and part performance can be significantly impact if choosing the wrong process.

CNC Milling vs. CNC Turning - Comparison Table

Category	CNC Milling	CNC Turning
Basic Principle	Rotating cutting tool removes material from fixed workpiece	Rotating workpiece removes material using stationary cutting tool
Material Removal Method	Linear multi-axis tool movement (X, Y, Z, 4th/5th axis optional)	Radial cutting along rotating axis
Best For Geometry	Complex 3D shapes, flat surfaces, pockets, contours	Cylindrical, round, rotationally symmetrical parts
Typical Parts	Housings, brackets, enclosures, molds, plates	Shafts, pins, bushings, sleeves, threaded rods
Machine Type	3-axis, 4-axis, 5-axis machining centers	CNC lathe, turning center
Multi-Axis Capability	Yes (especially 5-axis)	Limited (unless mill-turn machine)
Complex Geometry Capability	Excellent	Limited for non-round shapes
Concentricity Control	Good	Excellent (natural advantage of rotation)
Surface Finish (Round Parts)	Good but less efficient	Superior for cylindrical surfaces
Setup Cost	Moderate to High	Moderate
Programming Complexity	Higher for complex 3D parts	Lower for standard round parts
Cycle Time (Simple Part)	Longer	Shorter (for cylindrical parts)
Material Efficiency	Lower for round parts	High when using bar stock
Per-Part Cost (Simple Geometry)	Higher	Lower for round parts
Per-Part Cost (Complex Geometry)	Necessary process	May require secondary milling
Prototype Suitability	Excellent for complex designs	Excellent for round prototypes
Low-Volume Production	Flexible, good for 10–200 pcs	Highly efficient for shafts & connectors
High-Volume Consideration	May shift to casting or molding	Very efficient for bar-fed automation
Automation Potential	Moderate	High (bar feeders, robotic loading)
When to Choose	Non-symmetrical part, multiple faces, cavities	Cylindrical shape, tight concentricity, high efficiency needed
Hybrid Option	—	Mill-Turn machine for complex round parts

• If your part is round and symmetrical, turning is usually more cost-effective.
• If your part has flat faces, pockets, or complex features, milling is required.
• Also you can use a Mill-Turn machine to make the parts.
