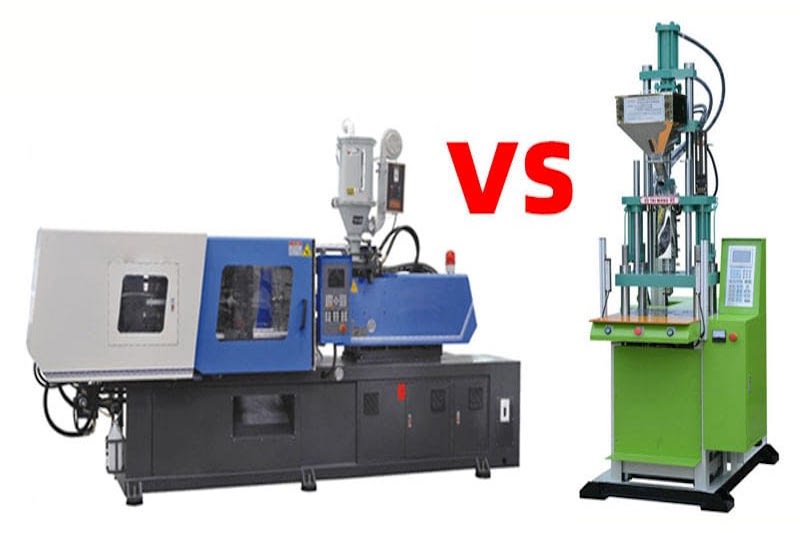

Horizontal and Vertical Injection Molding Machines

What’s The Different Between Horizontal and Vertical Injection Molding Machines?

Injection molding, a widely utilized manufacturing method for crafting plastic components, rests at the core of the production process. In the realm of molding, we encounter two principal orientations – the horizontal and the vertical injection molding. This article shall embark on an exploration of the distinctions inherent to these two classes of machines.

Injecting Precision into Manufacturing

Injection molding machines, ingenious devices that fashion products by propelling molten material into molds, are industry stalwarts. In the realm of plastics, they reign supreme, churning out a multitude of parts at an impressive scale.

This intricate dance of technology, orchestrated by these machines, begins with the art of heating plastic granules until they surrender to their molten form. A symphony of precision follows as the molten plastic is deftly injected into molds, swiftly cooled, and gracefully ejected, birthing the finished piece.

The annals of plastic molding unfurled with a nod to the late 19th century when the indomitable John Wesley Hyatt left an indelible mark with his patent in 1872, ingeniously using celluloid to craft billiard balls. Yet, it was James Watson Hendry who etched a more controlled and efficient path in 1946 when he unveiled the world’s first screw injection machine. This juncture marked a pivotal step in the journey of these molding machines.

The march of time witnessed an amalgamation of technology and materials, sparking the birth of increasingly sophisticated machines. Present-day incarnations are veritable marvels boasting automation prowess. These machines, now highly evolved, fashion components with intricate geometries and exquisite finishes. In their repertoire, two prominent protagonists emerge—the horizontal and vertical injection molding machines. Their distinction lies in the orientation of the mold during the process, shaping the efficiency and the spectrum of producible items.

Horizontal Injection Molding Machines: Crafting Excellence

Horizontal injection molding machines, the workhorses of modern rapid manufacturing, exhibit unique characteristics that set them apart from their vertical counterparts.

Horizontal Injection Molding

These machines operate with the mold placed horizontally, facilitating the flow of molten plastic from a horizontal direction. This orientation is ideal for applications where gravity plays a crucial role, ensuring even distribution of the material within the mold.

One notable advantage of horizontal machines is their suitability for large, complex parts. Their horizontal configuration accommodates sizable molds and provides ample space for the integration of intricate mechanisms.

Furthermore, they excel in over-molding, allowing the fusion of different materials or components to create a single, cohesive product. This versatility is a boon for industries such as automotive and electronics, where multi-material or multi-component parts are common.

Despite these strengths, horizontal machines have their limitations. They generally occupy more floor space than their vertical counterparts, which can be a constraint in smaller manufacturing setups.

Additionally, tooling changeovers in horizontal machines tend to be more time-consuming, impacting production efficiency. However, these challenges are often offset by the advantages they offer in specific applications.

Common applications for horizontal injection molding machines span a broad spectrum. They are particularly favored in the production of automotive parts, as well as household appliances. The ability to create large, durable components with precision makes them indispensable in these industries.

The packaging sector also benefits from horizontal machines due to their capacity to produce thin-walled containers and intricate packaging designs. Furthermore, the healthcare industry relies on horizontal molding for the production of medical devices and equipment, where precision and consistency are paramount.

Horizontal injection molding machines are a vital cog in the manufacturing wheel, offering distinct advantages in specific applications. Their capacity to handle large, complex parts and facilitate multi-material integration makes them an indispensable asset in various industries, contributing to the creation of durable, intricate components that define our modern world.

Vertical Injection Molding Machines: Crafting Precision

Vertical injection molding machines, with their upward orientation, bring a distinct approach to manufacturing. This vertical alignment enables gravity to play a pivotal role in securing inserts within the mold, making them a prime choice for over-molding.

These machines excel in insert molding, owing to their vertical setup, facilitating convenient insert loading and enhancing design flexibility. Additionally, their compact footprint renders them a practical option for space-constrained production facilities.

Yet, they do come with certain limitations. Their capacity is typically lower compared to horizontal counterparts, making them less suitable for high-volume production. Moreover, the vertical configuration might pose challenges when it comes to part removal, potentially affecting production speed.

Vertical injection molding machines find their forte in insert molding applications, such as crafting electrical connectors adorned with metal pins and fabricating parts with threaded inserts. They also shine in encapsulation processes, enveloping components entirely in plastic, a feat crucial in electronic component manufacturing.

Vertical injection molding machines, while not universally applicable, offer unique advantages that elevate them to a pivotal role in select manufacturing processes. Their precision, particularly in insert molding, and efficient space utilization make them indispensable tools for manufacturers seeking that perfect blend of function and form.

Horizontal vs. Vertical Injection Molding Machines: A Comprehensive Comparison

When confronted with the choice between horizontal and vertical injection molding machines, discerning the pivotal differences between these orientations is of paramount importance.

Vertical Molding Machine
Vertical Molding Machine

Key Differences

Orientation

The most conspicuous dissimilarity is the mold’s orientation. Horizontal machines adopt a flat, horizontal layout, whereas vertical machines opt for an upright mold positioning.

Space Efficiency

Horizontal machines, with their horizontal alignment, tend to consume more floor space. Conversely, vertical machines offer a space-efficient solution, rendering them judicious for compact manufacturing facilities.

Insert Molding

The proficiency of vertical machines in insert molding, attributed to their gravity-assisted mold orientation, renders them a superior choice for applications necessitating meticulous insert placement.

Capacity

Horizontal machines generally proffer higher production capacity, making them more fitting for high-volume manufacturing. In contrast, vertical machines, while achieving precision, may have limited capacity.

Factors to Consider

Volume and Scale

An ethical evaluation of your production needs concerning volume and scale is imperative. Horizontal machines are apt for large-scale, high-volume operations, while vertical machines are a prudent choice for endeavors of smaller magnitude.

Floor Space

Prudently assess your available floor space. Opt for vertical machines when dealing with spatial constraints. Horizontal machines are more suited to extensive manufacturing facilities.

Insert Molding

Deliberate upon the relevance of insert molding within your product line. For operations demanding exactness in insert placement, vertical machines present themselves as a compelling option.

Part Complexity

Ponder the intricacy of the parts you intend to manufacture. Horizontal machines are adept at handling larger and more complex components, while vertical machines shine in the context of intricate design intricacies.

Conclusion

In this comprehensive analysis of horizontal and vertical injection molding machines, we have elucidated the fundamental differences, including mold orientation, spatial efficiency, insert molding proficiency, and production capacities. The choice, in essence, hinges on the precise manufacturing requisites. Horizontal machines serve large-scale, high-volume production, whereas vertical machines shine in intricate designs and spatially constrained settings. Meticulous consideration of these factors ensures a judicious selection tailored to your distinct manufacturing exigencies.
