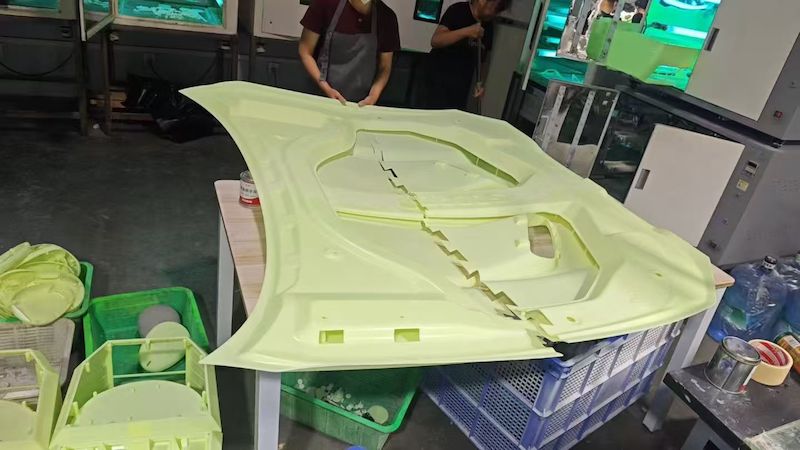

The Significances Of Rapid Prototype
Called as ‘first model’ or ‘hand model’ in somewhere, rapid prototype is the real and functional sample made according to the virtual drawing or data, which is used for testing or verifying the appearance and rationality for the new design, such as shape, structure, fitting, function, etc., this is the main significance of rapid prototype. The most common materials for prototypes are plastics and metals. Some of them can be used directly after machining such as CNC rapid prototyping, some of them need the manual work or post finish, such as polishing, painting, etc.
With the quick development of China Rapid Prototyping, prototype is used more and more widely, for almost every new design before tooling and production. Prototyping is the first and very important rapid manufacturing step of the product development process, which can provide the reliable physical basis for the feasibility of product design and preparation for production. So, the necessary is obvious.
The Critical 4 Significances of Rapid Prototyping
1. To inspect the appearance design
The design concept can be reflected as the shape, color, size, material via prototyping a real part from the idea or model, which can provide the effective physical reference for checking and improving the design proposal more in-depth.
2. Examine the structural design
Fast prototyping can verify if the structural design can meet the expected requirement, such as the structural rationality, the installing ease, the particular treatment, the details of the man-machine interaction and so on.
3. Reduce the developing risk
Through testing the prototype, you can find and solve the problems before building the mold, to avoid the problems occurred when mold building and cause the unnecessary losses.
4. Launch into the market quickly
Because of the very short lead time of Rapid Prototyping, many companies use the prototypes for product promotion and pre-sales before building the mold, to launch the new products quickly into the market.
Risk of Skipping Prototypes Making
Failures may happen during product development or production if without making a prototype to validate in read conditions.The failure includes:
| Failure Type | Description |
|---|---|
| Design Failure | Hidden design flaws may exist in the CAD model that are not discovered until production. |
| Functional Failure | The product may not perform as expected or may not work at all. |
| Assembly Failure | Parts may not fit together properly due to tolerance or alignment issues. |
| Manufacturing Failure | The design may be difficult or impossible to manufacture with the chosen process. |
| Structural Failure | The product may break, deform, or wear out quickly under real loads or stresses. |
| Material Failure | The selected material may not provide the required strength, durability, or heat resistance. |
| User Experience Failure | The product may be uncomfortable, inconvenient, or unsafe for users. |
| Cost Overrun | Problems discovered during production may require expensive redesign and tooling changes. |
| Production Delay | Fixing issues after production begins can significantly delay the project timeline. |
| Market Failure | A poorly tested product may lead to customer dissatisfaction, returns, or brand damage. |
There are many cases that failures due to no prototype testing, such as:
Ford PintoFuel Tank Failure
What happened:
The Ford Pinto had a fuel tank positioned behind the rear axle. In rear-end collisions, the tank could rupture and cause fires.
Problem:
The design was not sufficiently validated with real-world crash scenarios before mass production.
Result:
- Numerous accidents and fatalities
- Large recalls and lawsuits
- Severe damage to the brand reputation
Lesson:
Early prototype crash testing and design validation could have revealed the safety risk.
